NORRISEAL CONTROLS - Chambers & Domes

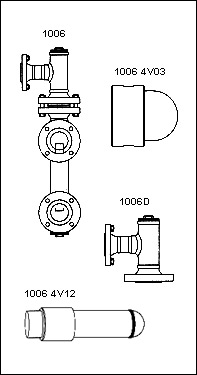

Series 1006 Vertical Chamber

An externally mounted vertical chamber used with the Series 1001, 1001A or 1001XL liquid lvel controllers, 1.50" - 2.00" NPT screwed or 1.00" - 2.00" ANSI class150 - 2500 flanged process connections. Various process connection styles and materials are available.

Series 1006, Style 4V03 Horizontal Chamber

An externally mounted carbon steel or 316 SST chamber used with the Series 1002A, 1005E and 1005P1liquid level switches. 1.00" NPT screwed process connections, 1.50" - 2.00" NPT screwed LLS connection, 300 psi W.P.

Series 1006D Dome Assembly

A top mounted dome used with the series 1001, 1001A or 1001XL liquid level controllers. 2.00" - 4.00" ANSI class 150 - 2500 flanged connections. Various materials are available.

Series 1006, Style 4V12 Horizontal Chamber

An externally mounted carbon steel chamber used with the Series 1001, 1001A and 1001XL liquid level controllers. 1.00" NPT screwed 3000 psi W.P. or 1.00" - 2.00" ANSI class 150 - 2500 flanged process connections, 2.00' NPT screwed or 2.00" ANSI class 150 - 2500 flanged LLS connection (higher W.P. available on application).
