CONTROL VALVES - Series HPX and Series HPAX

HPX Available in 2, 3, 4 and 6 inch sizes

HPAX Available in 2 inch

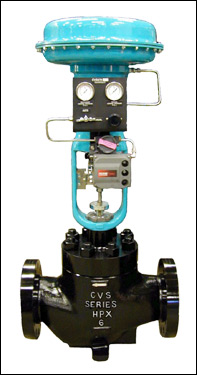

The HPX Control Valve is a rugged single port high-pressure globe valve, with metal seats, quick-change trim and push down to close plug action.

The HPX2 uses a balanced valve plug, and piston rings are used to provide the seal between the valve plug and cage.

The HPX5 uses a balanced valve plug, and a pressure-assisted spring seal to provide the seal between the valve plug and cage.

For standard cages, the flow direction is flow down with the following flow characteristics: equal percentage, modified equal percent, and linear. The end connections are Class 900 and 1500 raised face and ring type joint flanges as per ASME B16.34-latest edition.

Valve bodies are available in LCC, WCB and 316sst material.

CVS Controls manufactures Control Valves and associated instrumentation products to specification that facilitate the direct replacement with FISHER* process control equipment.

* FISHER is a registered trademark of Fisher Controls International Inc. Fisher Controls International Inc. is not affiliated with CVS Controls Ltd. in any manner. Fisher Controls International Inc. has not reviewed, sanctioned or endorsed any products manufactured, reconditioned, sold or marketed by CVS Controls Ltd.
